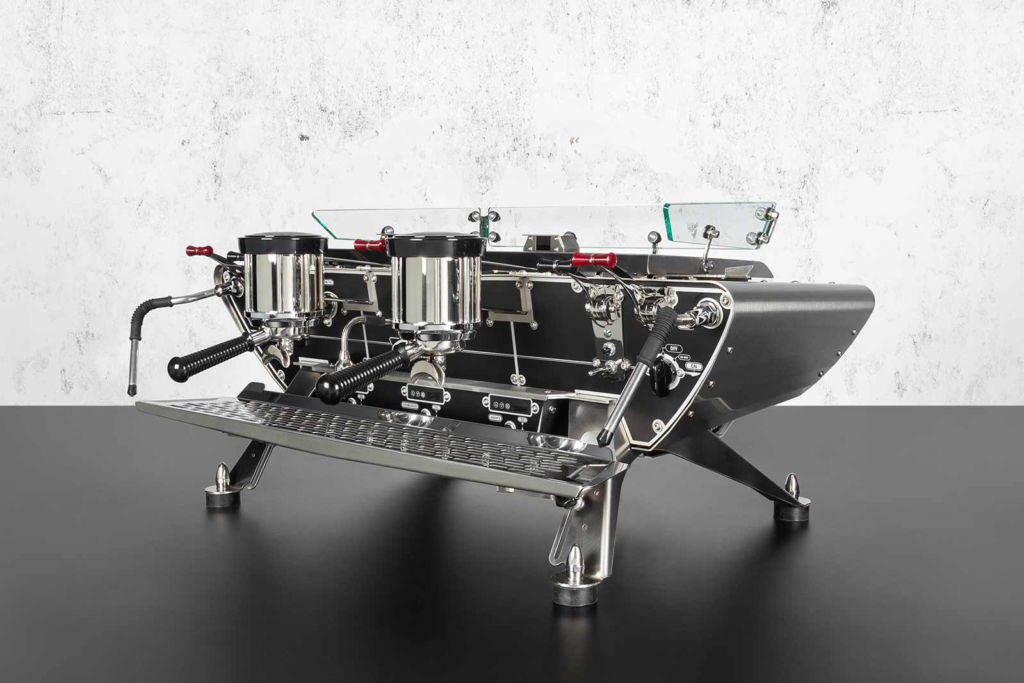

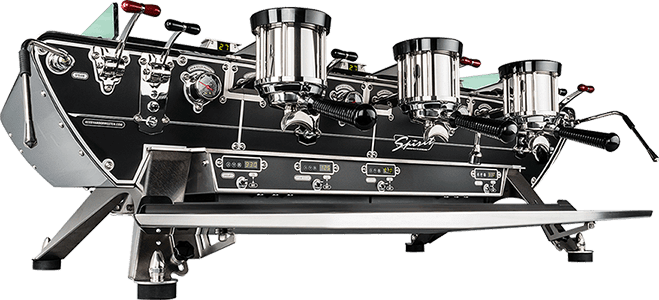

Spirit
Multi-boiler architecture
One large stainless steel steam boiler with a 6000 watt heating element designed for very high demands plus one stainless steel brew boiler per group, each with independent PID temperature control. This setup provides excellent thermal stability and fast recovery, even during peak service.
Electronic Temperature Control & PID
PID-controlled boiler pressure (with user-adjustable temperature settings) enhances both extraction consistency and steam performance.
Shot Counters
Every group has a digital display mounted above each group that functions as a shot timer during extraction. This gives Baristas instant feedback in direct line to keep shots dialed.
Progressive pre-infusion

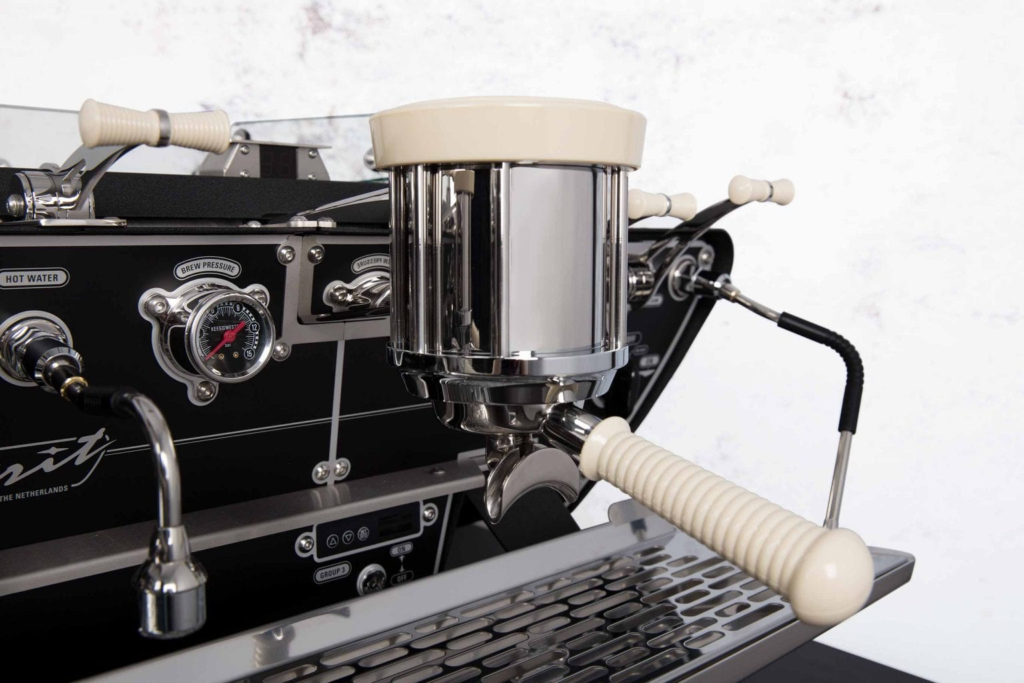

Slow Infusion Allows for finer grinds, increasing yield and reducing channeling. Each group also has its own pressure gauge showing real extraction pressure at the puck, making dialing-in more precise and repeatable. Optional Idromatic system for further pressure profiling.
Adjustable working height
The drip tray height is easily adjustable, allowing you to optimize working height for different cup sizes, scales, or workflow preferences.

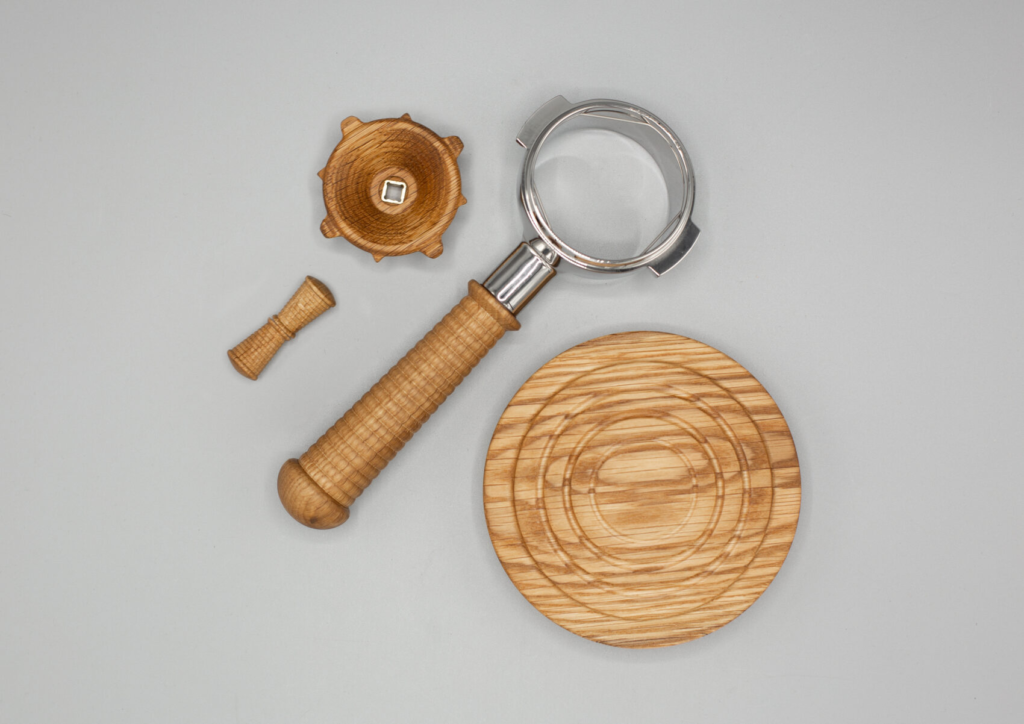

Custom Finish Options

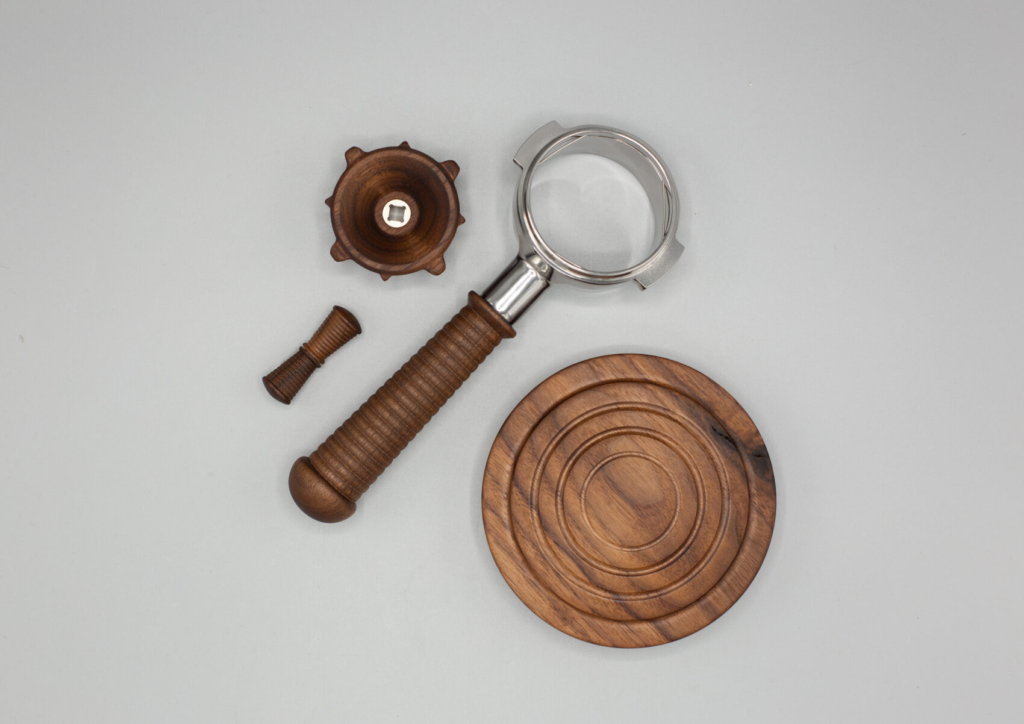

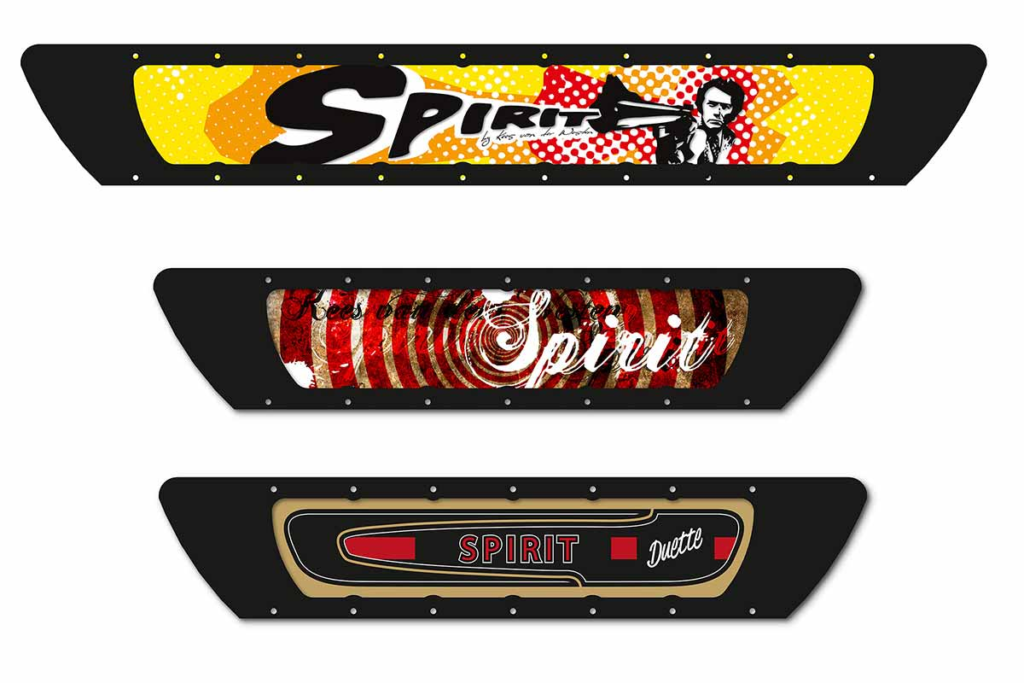

Multiple choices for legs, front and side panels, cup rails, colours, awnings, knobs, and group caps, plus options like foot-operated steam valves and custom rear logos. This makes the Spirit an aesthetic centre piece as well as a workhorse.
Specifications
| Model | Spirit 2 Group | Spirit 3 Group |
|---|---|---|
| Boiler type | Multi-boiler (steam boiler plus one coffee boiler per group, PID controlled) | |
| Steam boiler capacity | 10.5 L | 19.5 L |
| Number of groups | 2 | 3 |
| Length | 36.6 in (930 mm) | 36.6 in (930 mm) |
| Depth | 27.9 in (710 mm) | 27.9 in (710 mm) |
| Height | 16.1 in (410 mm) | 16.1 in (410 mm) |
| Voltage | 220–240 V | 220–240 V |
| Amperage | 31.8–33 A | 40.9–43.5 A |
| Power | Duette 7300 –7600 W | Triplette 9400–10,100 W |
| Weight | 2 Group 275.5 lb (95 kg) | 3 Group 210 lb (125 kg) |
| Certification | cETL | |
| Installation | 220–240 V dedicated circuit, plumbed-in water line with proper filtration; professional installation required. | |
